B.E.C Conduit Pipes |
| |
|
Steel Tube Engineering Company supply B.E.C conduit pipes in the sizes mentioned below,
with two type of protective coatings against external influences.
Stove enameled coating for medium protection (both inner and outer
surfaces) and Hot Dip Galvanising coating for heavy protection
(both inner and outer surfaces)

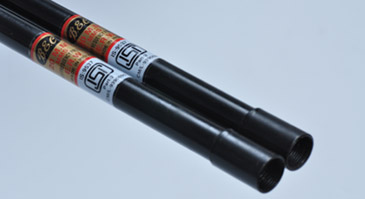

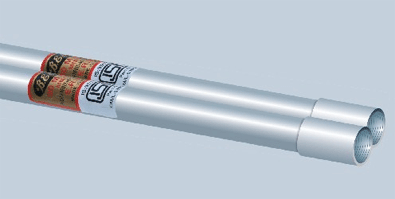

--- 20mm MS conduit and 20mm Gl (Galvanised)
conduit
|
|
The
following are the dimensions* for both MS conduit and Gl conduit
|
Nominal Size of Conduits (in mm) |
Outside Diameter
(in mm) |
Tolerance in outside Diameter (in mm) |
Wall thickness of Conduits (Range in mm) |
|
20 |
20 |
0-0.3 |
1.4 to 1.8 |
|
| |
|
----

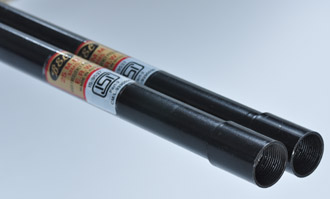

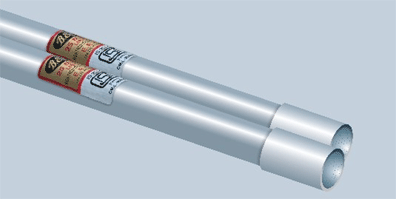

25mm MS conduit and 25mm Gl (Galvanised) conduit |
| |
|
|
|
The
following are the dimensions* for both MS conduit and Gl conduit
|
Nominal Size of Conduits (in mm) |
Outside Diameter (in mm) |
Tolerance in outside Diameter (in mm) |
Wall thickness of Conduits (Range in mm) |
|
25 |
25 |
0-0.4 |
1.4 to 1.8 |
|
| |
|
----

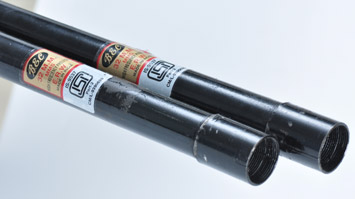

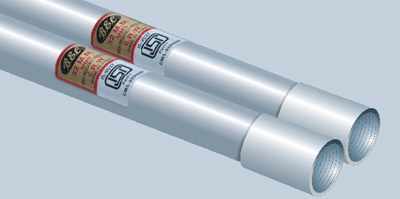

32mm MS conduit and 32mm Gl (Galvanised) conduit |
|
|
|
The following are the
dimensions* for both MS conduit and Gl conduit
|
Nominal Size of Conduits (in mm) |
Outside Diameter (in mm) |
Tolerance in outside Diameter (in mm) |
Wall thickness of Conduits (Range in mm) |
|
32 |
32 |
0-0.4 |
1.4 to 1.8 |
|
| |
|
----

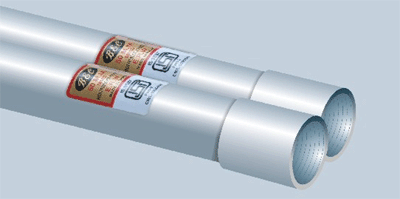

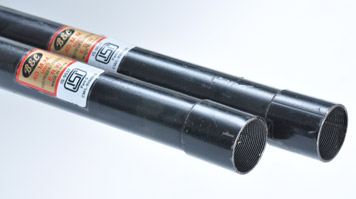

40mm MS conduit and 40mm Gl (Galvanised) conduit |
| |
|
|
|
The
following are the dimensions* for both MS conduit and Gl conduit
|
Nominal Size of Conduits (in mm) |
Outside Diameter (in mm) |
Tolerance in outside Diameter (in mm) |
Wall thickness of Conduits (Range in mm) |
|
40 |
40 |
0-0.4 |
1.6 to 2.2 |
|
| |
|

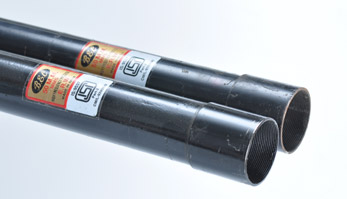

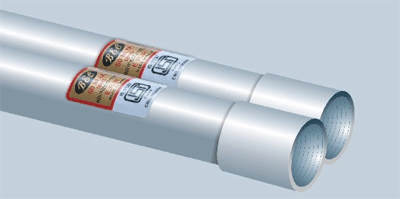

---- 50mm MS conduit and 50mm Gl (Galvanised) conduit |
| |
|
|
| |
|
The
following are the dimensions* for both MS conduit and Gl conduit
|
Nominal Size of Conduits (in mm) |
Outside Diameter (in mm) |
Tolerance in outside Diameter (in mm) |
Wall thickness of Conduits (Range in mm) |
|
50 |
50 |
0-0.5 |
1.6 to 2.2 |

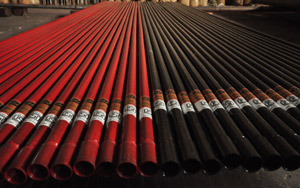

Apart from black conduit pipes, we do make conduit pipes in other
colours as per customers' specifications
* All Dimensions are as
per IS:9537 Part II - 1981
|
